Battery Box 4L-BS (kickstart-only)

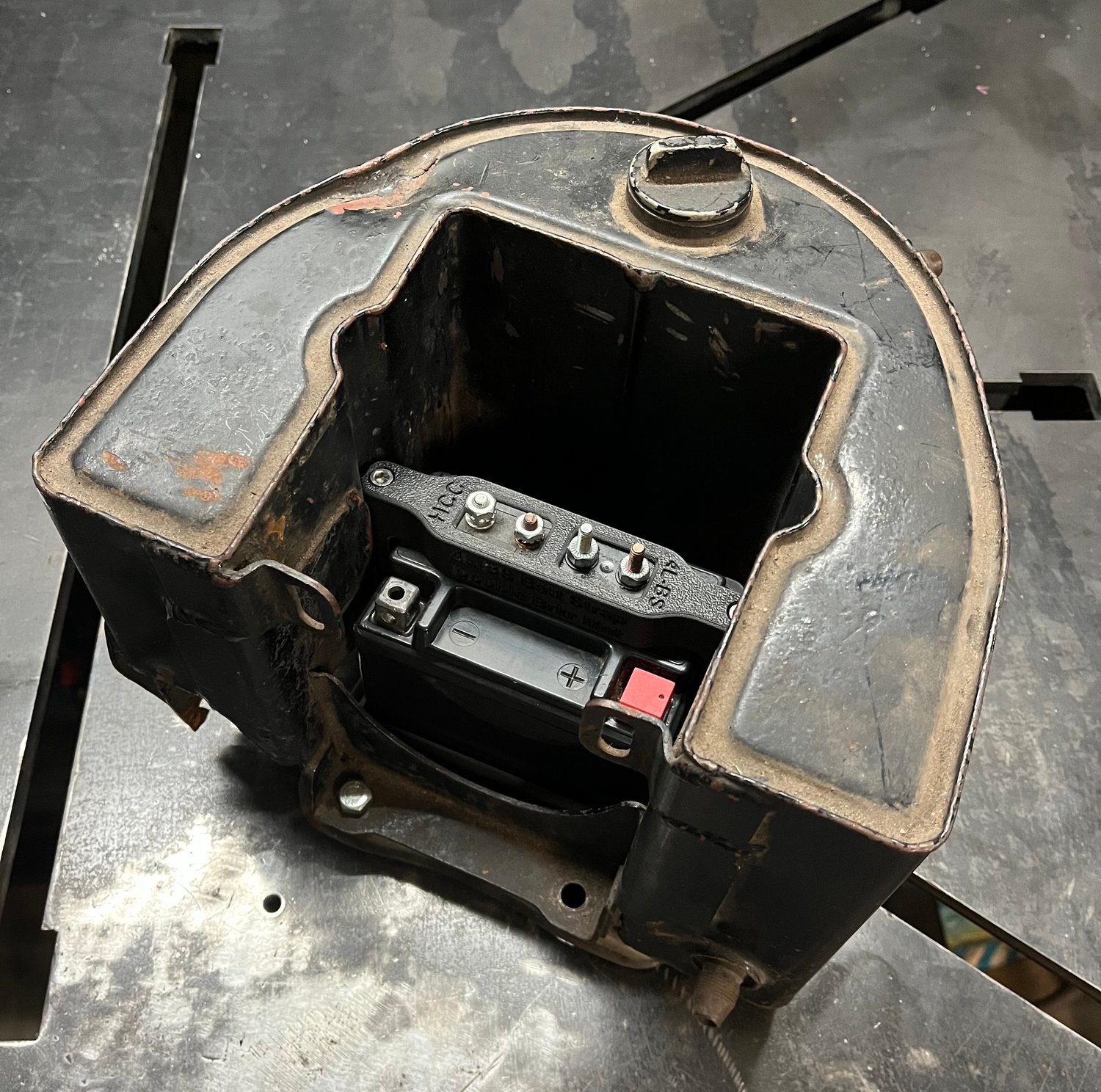

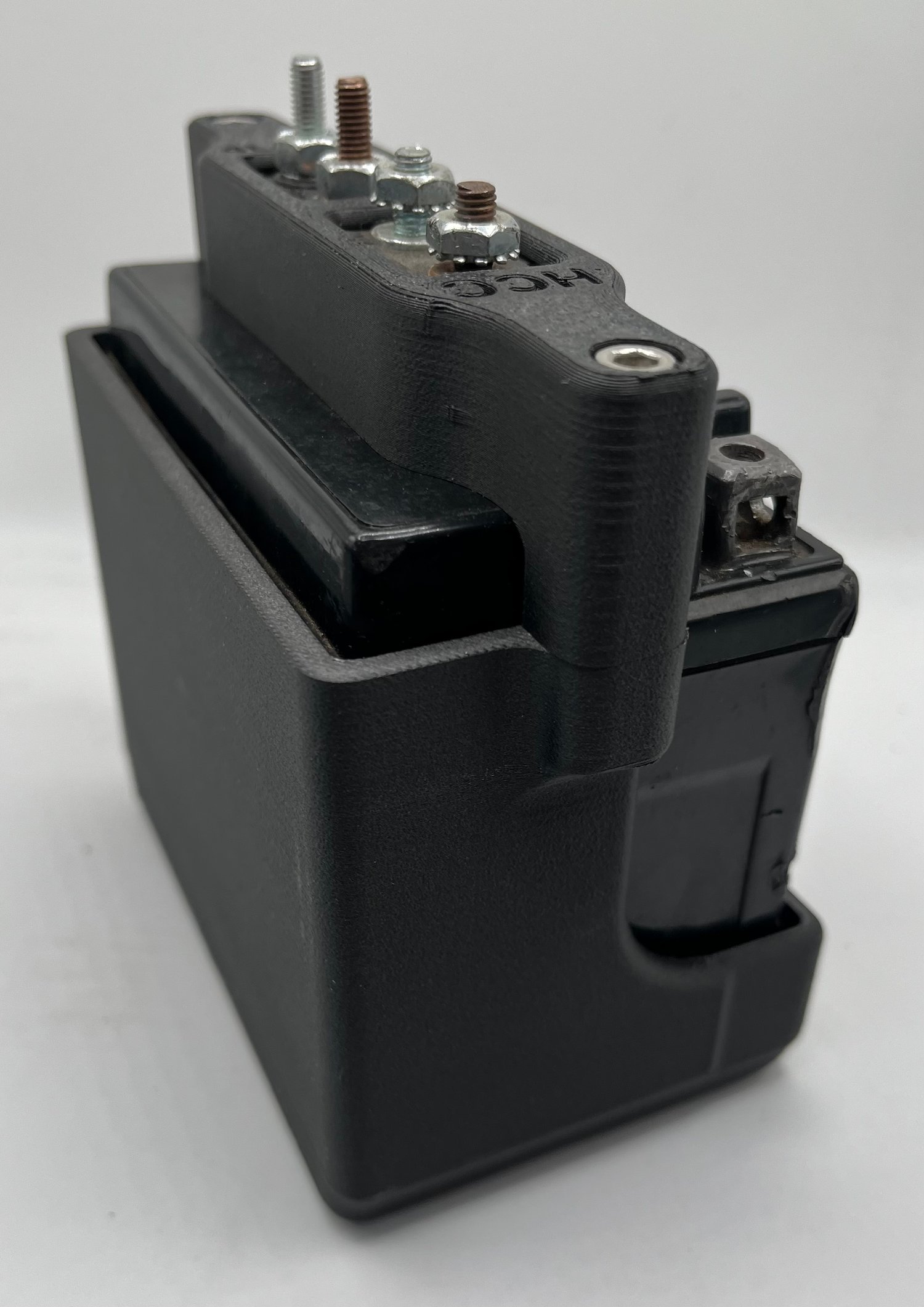

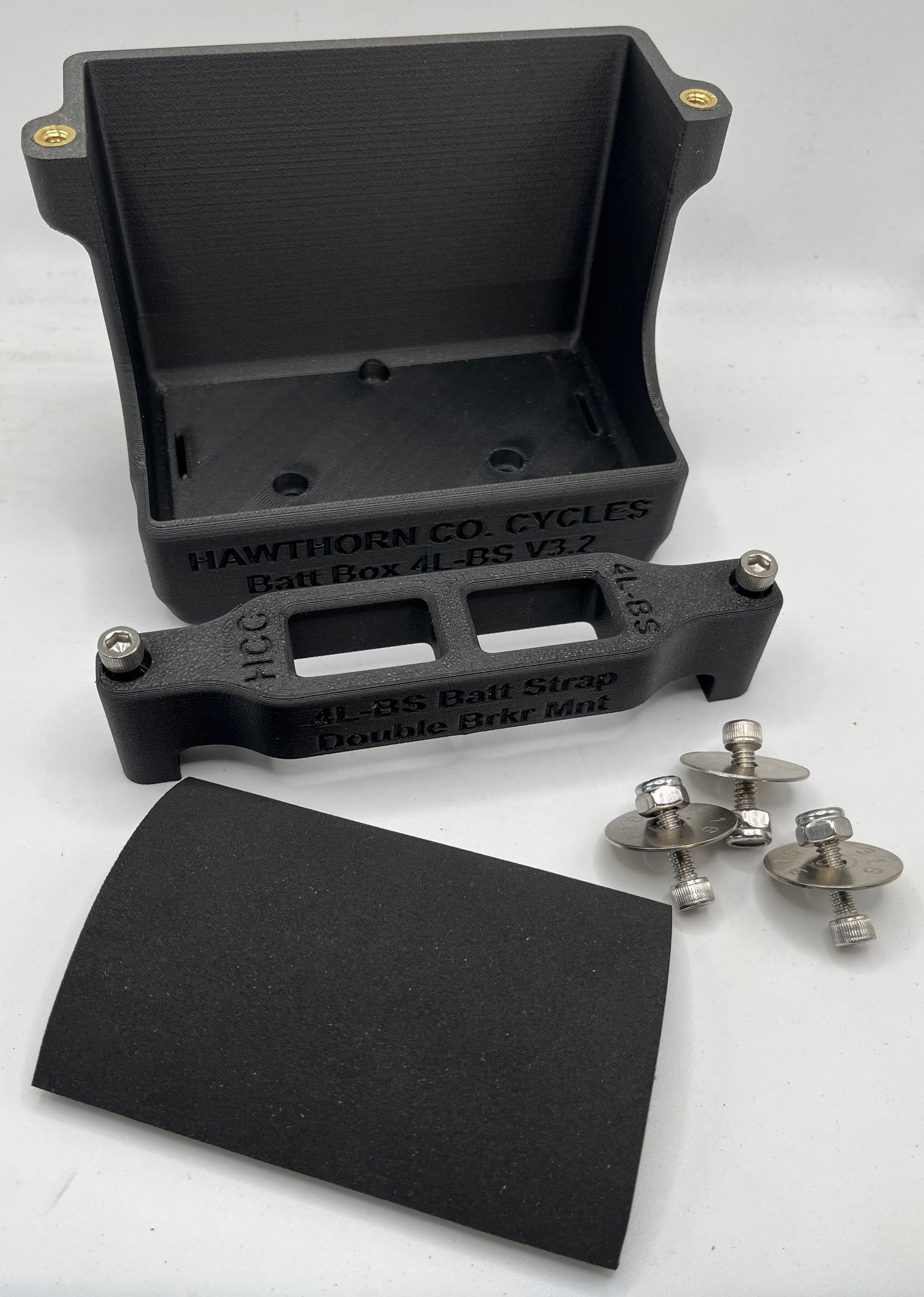

This is intended as an adapter for fitting a 4L-BS battery to most standard battery compartments, including OEM Harley Davidson Horseshoe oil tanks, and it has a dual Bussmann Automotive Circuit Breaker mount integrated into the top strap. This size battery is mostly suited for kick-start only bikes.

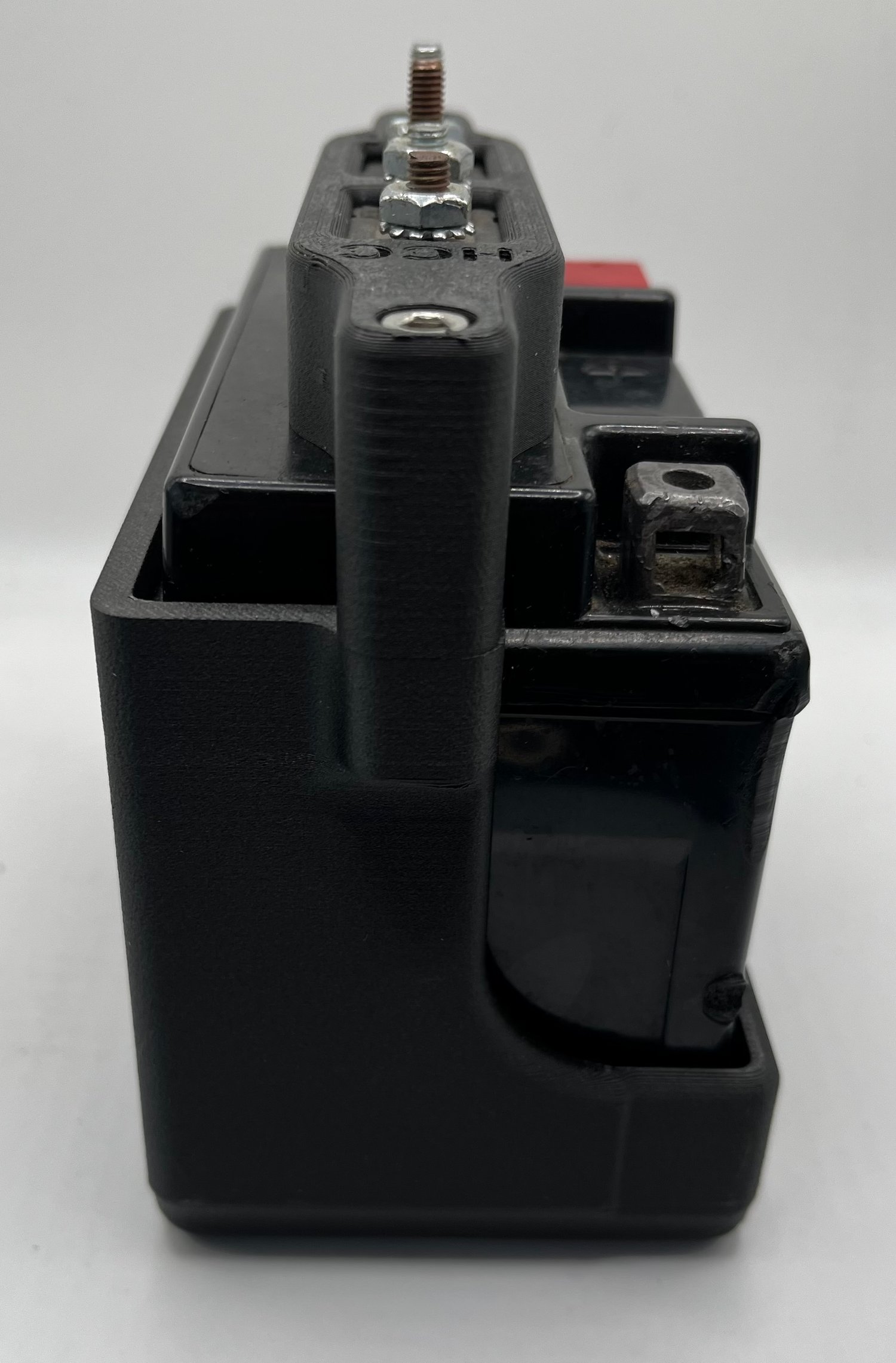

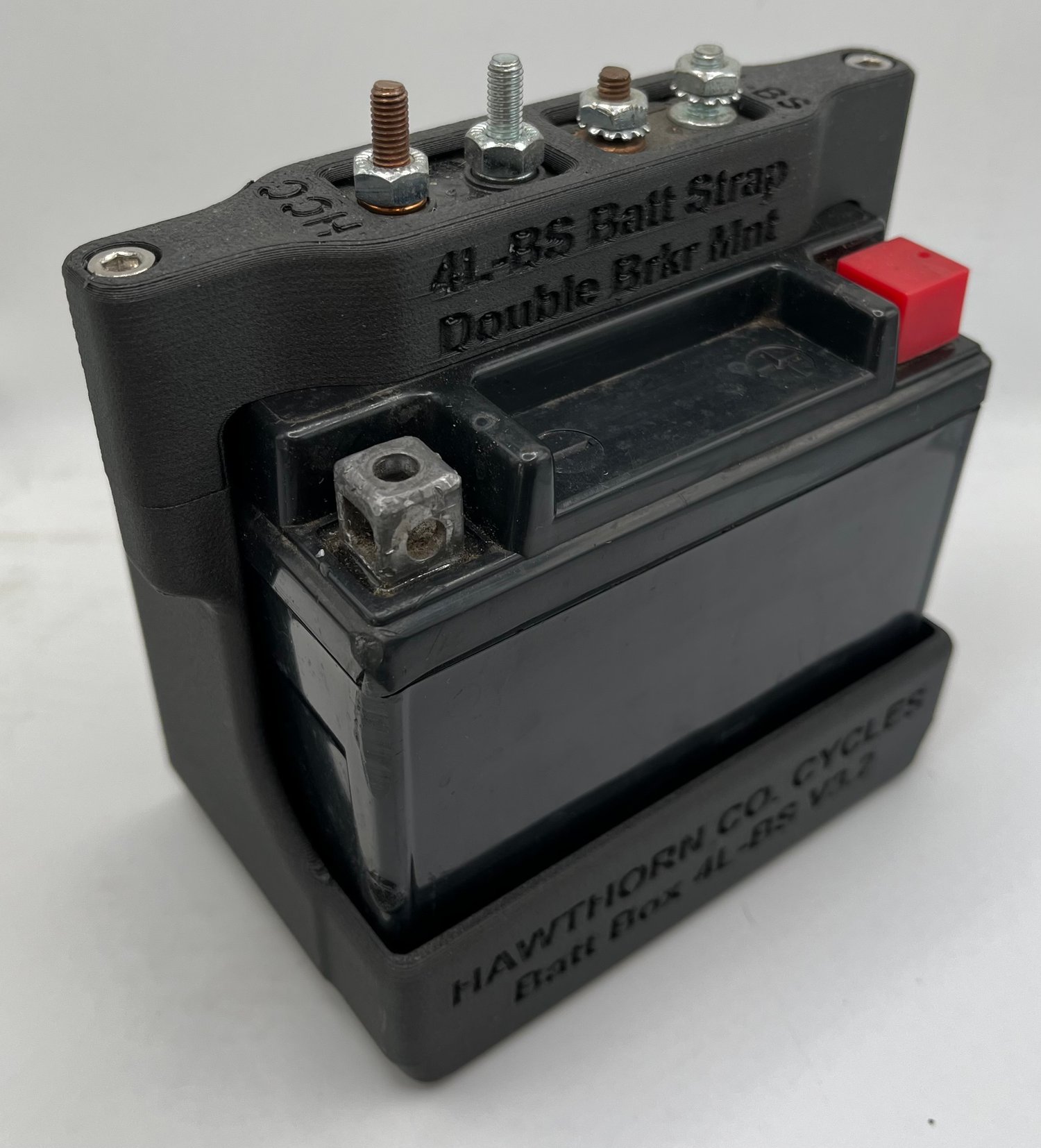

***The battery pictured is a Super Start brand ETZ4L from O'Reilly, but most any 4L-BS should work, just check that it is 3-3/8" tall.

Super Start ETZ4L Sealed AGM Battery- O'Reilly Auto Parts
https://tinyurl.com/ymbxpxhx

Die Hard TX4L Sealed AGM Battery- Advance Auto Parts
https://tinyurl.com/4hukpp7s

Xtreme 4LBS Sealed AGM Battery- Batteries Plus
https://tinyurl.com/5fsw2tky

EverStart 4lBS Sealed AGM Battery- Walmart
https://tinyurl.com/k7zdyxtb

Batt Box Outer Dimensions-
Base Width: 4-7/8"
Top Width: 5-3/8"
Depth: 3-1/8"
Height: 4-7/8"

Batt Box Inner Dimensions-
Width: 4-1/2"
Depth: 2-3/4"
Height: 3-3/8"
